उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Item: | Lock crimp Woven wire screen for mining quarry aggregate sifting | Material: | High tensile spring steel, manganese steel, stainless steel, polyurethane.high carbon steel is better choice for anti-friction |
|---|---|---|---|
| Technology: | wire crimped cut and machine weaving | Wire diameter range: | 0.7mm-12.8mm |
| Aperture: | 0.45mm-150mm | Width: | 1-6m |
| Length: | 1-200m ( sheet : 2m ) , roll (200m) | Edge preparation: | plain or without special edge treament Bending hook hook with wrap plate |
| प्रमुखता देना: | 6m खनन स्क्रीन मेष,क्रिम्प्ड बुना खनन स्क्रीन मेष,खनन crimped बुना तार मेष |
||

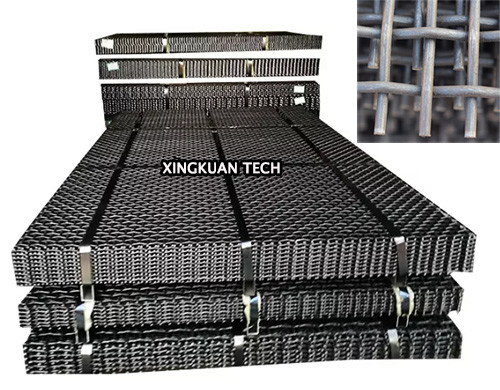

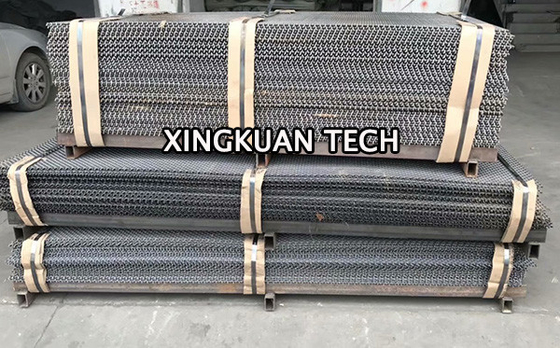

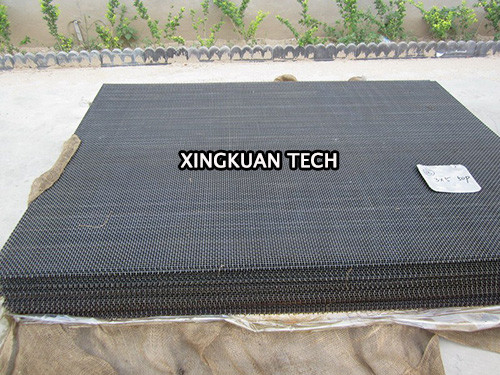

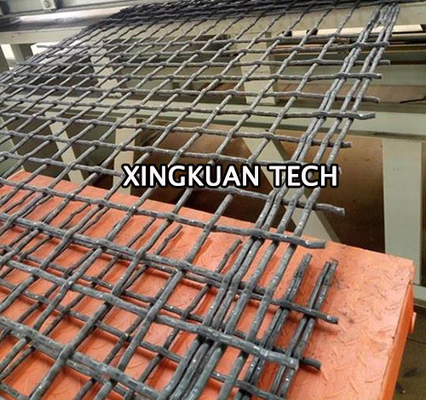

उच्च कार्बन स्टील खनन स्क्रीन जाली में crimped बुना उत्पादन
विवरण:
सटीकता, स्वच्छ हवा, कुशल उत्पादन और अपटाइम के संबंध में उच्च मांगों को पूरा करने के लिए कुशल स्क्रीन को बेहतर पहनने की सुरक्षा की आवश्यकता होती है।हमारे स्क्रीन पैनलों और स्क्रीनिंग मीडिया समाधानों की विस्तृत श्रृंखला रबर से निर्मित होती है, पॉलीयूरेथेन, कंक्रीट तार, इस्पात और मिश्रित सामग्री।मॉड्यूलर स्क्रीन पैनलों का परिणाम है, लागत प्रभावी और कम रखरखाव और डाउनटाइम के लिए डिज़ाइन किया गया है जबकि फ़ीड वितरण और उच्च जल निकासी क्षमताओं को सुनिश्चित करता है।यहां हम आपको उच्च कार्बन स्टील खनन स्क्रीन जाल के बारे में जानने के लिए नेतृत्व करना चाहते हैं।.
त्वरित विवरणः
एपर्चरः0.5-150 मिमी
तार का व्यास:0.6mm-12.8mm
सामग्री:उच्च कार्बन स्टील, स्टेनलेस स्टील
किनाराःफ्लैट शीट (सादा किनारा या हुक के बिना),
नंगे हुक (बेंड हुक ),
बैंड हुक (साइड के साथ लपेटने की प्लेट)
स्क्रीन मेष पैरामीटरः
| खोलना (मिमी) | तार का आकार (मिमी) | वजन किलोग्राम/मीटर2 | खोलना (मिमी) | तार का आकार (मिमी) | वजन किलोग्राम/मीटर2 | खोलना (मिमी) | तार का आकार (मिमी) | वजन किलोग्राम/मीटर2 | खोलना (मिमी) | तार का आकार (मिमी) | वजन किलोग्राम/मीटर2 |
| 3 | 2 | 10.16 | 12.5 | 4 | 12.32 | 26.99 | 5.72 | 12.7 | 75 | 11.2 | 18.48 |
| 3.15 | 1.4 | 5.47 | 12.5 | 5 | 18.14 | 26.99 | 6.3 | 15.14 | 75 | 12.5 | 22.68 |
| 3.15 | 2 | 9.86 | 12.7 | 3.05 | 7.5 | 28 | 5 | 9.62 | 76.2 | 9.53 | 24.22 |
| 3.18 | 1.22 | 4.3 | 12.7 | 3.76 | 10.91 | 28 | 6.3 | 14.7 | 76.2 | 9.53 | 13.45 |
| 3.18 | 1.37 | 5.24 | 12.7 | 4.11 | 12.76 | 28 | 8 | 22.58 | 76.2 | 12.7 | 23.04 |
| 3.18 | 1.83 | 8.49 | 12.7 | 4.5 | 14.95 | 28.58 | 5.72 | 12.11 | 80 | 10 | 14.11 |
| 3.18 | 2.03 | 10.05 | 12.7 | 4.88 | 17.2 | 28.58 | 6.3 | 14.45 | 80 | 12.5 | 21.45 |
| 3.18 | 2.34 | 12.6 | 12.7 | 5.26 | 19.56 | 28.58 | 7.94 | 21.92 | 80 | 12.5 | 37.8 |
| 3.18 | 2.67 | 15.48 | 13.2 | 3.15 | 7.71 | 30 | 4 | 5.98 | 85 | 11.2 | 16.56 |
| 3.35 | 2 | 9.5 | 13.2 | 4 | 11.81 | 30 | 5 | 9.07 | 90 | 12.5 | 19.36 |
| 3.75 | 2 | 8.83 | 13.2 | 5 | 17.45 | 30 | 6.3 | 13.89 | 100 | 11.2 | 14.33 |
| 3.75 | 2.5 | 12.7 | 14 | 2.5 | 4.81 | 30 | 7.1 | 17.26 | 100 | 12.5 | 17.64 |
| 3.97 | 3.05 | 16.83 | 14 | 4 | 11.29 | 30 | 8 | 21.39 | 101.6 | 12.7 | 17.92 |
| 4 | 2 | 8.47 | 14 | 5 | 16.71 | 30 | 10 | 31.75 | 125 | 12.5 | 14.43 |
| 4 | 2.5 | 12.21 | 14 | 5 | 16.71 | 30 | 10 | 31.75 | 150 | 12.5 | 12.21 |
| 4 | 3.15 | 17.62 | 14 | 6.3 | 24.83 | 31.5 | 5 | 8.7 | 150 | 12.5 | 22.68 |
| 4.35 | 2 | 8 | 14.29 | 4.11 | 11.66 | 31.5 | 6.3 | 13.34 | |||
| 4.5 | 2.5 | 11.34 | 14.29 | 4.88 | 15.78 | 31.5 | 7.1 | 16.59 | |||
| 4.5 | 2.8 | 13.64 | 14.29 | 5.26 | 17.97 | 31.5 | 8 | 20.58 | |||
| 4.5 | 3.15 | 16.47 | 14.29 | 5.72 | 20.77 | 31.5 | 8 | 20.58 | |||
| 4.75 | 2 | 7.53 | 15 | 5 | 15.88 | 31.5 | 10 | 30.6 | |||
| 4.75 | 2.8 | 13.19 | 15 | 6.3 | 23.66 | 31.5 | 11.2 | 37.31 | |||
| 4.75 | 3.15 | 15.95 | 15 | 8 | 35.34 | 31.5 | 12.5 | 45.1 | |||
| 4.76 | 2.03 | 7.71 | 15.88 | 4.11 | 10.73 | 31.5 | 12.5 | 45.1 | |||
| 4.76 | 2.34 | 9.79 | 15.88 | 4.88 | 14.57 | 31.75 | 6.3 | 13.25 | |||
| 4.76 | 2.67 | 12.19 | 15.88 | 5.26 | 16.62 | 31.75 | 7.19 | 16.86 | |||
| 4.76 | 3.05 | 15.13 | 15.88 | 5.72 | 19.24 | 31.75 | 7.94 | 20.17 | |||
| 4.76 | 3.43 | 18.24 | 15.88 | 6.3 | 22.73 | 31.75 | 9.53 | 27.94 | |||
| 5 | 1.6 | 4.93 | 16 | 4 | 10.16 | 31.75 | 10.01 | 30.47 | |||
| 5 | 2 | 7.26 | 16 | 5 | 15.12 | 31.75 | 11.11 | 36.57 | |||
| 5 | 2.5 | 10.58 | 16 | 5.6 | 18.44 | 34.93 | 4 | 5.22 | |||
| 5 | 2.8 | 12.77 | 16 | 6.3 | 22.6 | 34.93 | 6.3 | 12.23 | |||
| 5 | 3.15 | 15.46 | 16 | 8 | 33.87 | 34.93 | 7.94 | 18.68 | |||
| 5.3 | 2.5 | 10.18 | 16.5 | 2.5 | 4.18 | 34.93 | 11.11 | 34.05 | |||
| 5.3 | 3.15 | 14.91 | 17.46 | 3.05 | 5.76 | 35.5 | 8 | 18.69 | |||
| 5.56 | 2.67 | 11 | 17.46 | 3.76 | 8.46 | 35.5 | 10 | 27.91 | |||
| 5.56 | 3.05 | 13.72 | 17.46 | 4.88 | 13.54 | 35.5 | 12.5 | 41.34 | |||
| 5.6 | 2.8 | 11.85 | 17.46 | 6.3 | 21.21 | 35.5 | 12.5 | 41.34 | |||
| 5.6 | 3.15 | 14.4 | 18 | 4 | 9.24 | 37.5 | 7.1 | ||||
| 6 | 2 | 6.35 | 18 | 5 | 13.8 | 37.5 | 8 | 17.86 | |||
| 6 | 2.5 | 9.34 | 18 | 6.3 | 20.74 | 38.1 | 7.19 | 14.5 | |||
| 6 | 3.15 | 13.77 | 18 | 8 | 31.26 | 38.1 | 7.94 | 17.39 | |||
| 6.3 | 2 | 6.12 | 19 | 2.8 | 4.57 | 38.1 | 9.53 | 24.22 | |||
| 6.3 | 2.5 | 9.02 | 19 | 5 | 13.23 | 38.1 | 9.53 | 24.22 | |||
| 6.3 | 3.15 | 13.34 | 19 | 5.6 | 16.19 | 38.1 | 10.01 | 26.45 | |||
| 6.3 | 4 | 19.73 | 19 | 6.3 | 19.92 | 38.1 | 11.11 | 31.86 | |||
| 6.35 | 2.34 | 8 | 19.05 | 3.05 | 5.35 | 38.1 | 12.7 | 40.32 | |||
| 6.35 | 2.67 | 10.04 | 19.05 | 4.88 | 12.64 | 38.1 | 12.7 | 40.32 | |||
| 6.35 | 3.05 | 12.57 | 19.05 | 5.26 | 14.45 | 40 | 4 | 4.62 | |||
| 6.35 | 3.43 | 15.28 | 19.05 | 5.72 | 16.78 | 40 | 8 | 16.93 | |||
| 6.35 | 4.11 | 20.51 | 19.05 | 6.3 | 19.88 | 40 | 8 | 16.93 | |||
| 6.47 | 2 | 6 | 19.05 | 6.3 | 19.88 | 40 | 10 | 25.4 | |||
| 6.7 | 3.15 | 12.79 | 19.05 | 7.94 | 29.66 | 40 | 10 | 25.4 | |||
| 6.87 | 1.6 | 3.84 | 20 | 5 | 12.7 | 40 | 12.5 | 37.8 | |||
| 7.1 | 2.5 | 8.27 | 20 | 6.3 | 19.17 | 40 | 12.5 | 37.8 | |||
| 7.1 | 2.8 | 10.06 | 20 | 6.3 | 19.17 | 41.28 | 11.11 | 29.92 | |||
| 7.1 | 3.15 | 12.29 | 20 | 8 | 29.03 | 42.5 | 7.1 | 12.91 | |||
| 7.1 | 4 | 18.31 | 20.6 | 2.8 | 4.26 | 42.5 | 8 | 16.1 | |||
| 7.5 | 3.15 | 11.83 | 20.6 | 6.3 | 18.74 | 44.45 | 7.19 | 12.71 | |||
| 7.94 | 3.43 | 13.14 | 21.2 | 6.3 | 18.33 | 44.45 | 9.53 | 21.37 | |||
| 7.94 | 3.76 | 15.35 | 21.2 | 6.3 | 18.33 | 45 | 6.3 | 9.83 | |||
| 7.94 | 4.11 | 17.8 | 21.2 | 7.1 | 22.62 | 45 | 8 | 15.34 | |||
| 7.94 | 4.88 | 23.59 | 21.7 | 6.3 | 18 | 45 | 10 | 23.09 | |||
| 8 | 2.5 | 7.56 | 22.23 | 4.88 | 11.16 | 45 | 10 | 23.09 | |||
| 8 | 3.15 | 11.3 | 22.23 | 5.26 | 12.78 | 45 | 12.5 | 34.51 | |||
| 8 | 4 | 16.93 | 22.23 | 5.72 | 14.87 | 45 | 12.5 | 34.51 | |||
| 8.5 | 4 | 16.26 | 22.23 | 6.3 | 17.67 | 47.5 | 8 | 14.65 | |||
| 9 | 2.5 | 6.9 | 22.23 | 6.3 | 17.67 | 50 | 8 | 14.01 | |||
| 9 | 3.15 | 10.37 | 22.23 | 7.19 | 22.32 | 50 | 10 | 21.17 | |||
| 9 | 4 | 15.63 | 22.23 | 7.94 | 26.54 | 50 | 10 | 21.17 | |||
| 9.5 | 2.5 | 6.61 | 22.25 | 3.15 | 4.96 | 50 | 12.5 | 31.75 | |||
| 9.5 | 2.8 | 8.09 | 22.4 | 5.6 | 14.22 | 50 | 12.5 | 31.75 | |||
| 9.5 | 3.15 | 9.96 | 22.4 | 6.3 | 17.56 | 50.8 | 7.94 | 13.63 | |||
| 9.5 | 4 | 15.05 | 22.4 | 6.3 | 17.56 | 50.8 | 9.53 | 19.12 | |||
| 9.53 | 3.43 | 11.53 | 22.4 | 7.1 | 21.7 | 50.8 | 9.53 | 19.12 | |||
| 9.53 | 3.76 | 13.51 | 22.4 | 8 | 26.74 | 50.8 | 9.53 | 33.03 | |||
| 9.53 | 4.11 | 15.73 | 22.4 | 8 | 26.74 | 50.8 | 10 | 20.89 | |||
| 9.53 | 4.88 | 20.99 | 22.4 | 10 | 39.2 | 50.8 | 12.7 | 32.26 | |||
| 9.53 | 6.3 | 31.84 | 23.6 | 5 | 11.1 | 53 | 8 | 13.32 | |||
| 9.7 | 3 | 9 | 23.6 | 6.3 | 16.86 | 53 | 10 | 20.16 | |||
| 10 | 3.15 | 9.58 | 23.81 | 5.26 | 12.09 | 56 | 8 | 12.7 | |||
| 10 | 4 | 14.51 | 23.81 | 5.72 | 14.07 | 56 | 10 | 19.24 | |||
| 10 | 5 | 21.17 | 23.81 | 7.94 | 25.22 | 56 | 11.2 | 23.71 | |||
| 10 | 6.3 | 30.92 | 25 | 3.15 | 4.48 | 56 | 12.5 | 28.97 | |||
| 10.2 | 2.5 | 6.25 | 25 | 3.15 | 4.48 | 57.15 | 10.01 | 18.95 | |||
| 10.7 | 2 | 4 | 25 | 4 | 7.01 | 60 | 8 | 11.95 | |||
| 10.6 | 4 | 13.92 | 25 | 6.3 | 16.1 | 60 | 10 | 18.14 | |||
| 10.6 | 6.3 | 29.83 | 25 | 6.3 | 16.1 | 60 | 11.2 | 22.37 | |||
| 11.11 | 4.5 | 16.48 | 25 | 8 | 24.63 | 63 | 10 | 17.4 | |||
| 11.11 | 4.88 | 18.91 | 25 | 8 | 24.63 | 63 | 11.2 | 21.47 | |||
| 11.2 | 2.8 | 7.11 | 25 | 10 | 36.29 | 63.5 | 7.94 | 11.21 | |||
| 11.2 | 3.15 | 8.78 | 25.4 | 3.05 | 4.15 | 63.5 | 12.7 | 26.88 | |||
| 11.2 | 4 | 13.37 | 25.4 | 5.26 | 11.46 | 65 | 8 | 11.13 | |||
| 11.2 | 5 | 19.6 | 25.4 | 5.72 | 13.35 | 65 | 10 | 16.93 | |||
| 11.8 | 2.5 | 5.55 | 25.4 | 6.3 | 15.9 | 65 | 12.5 | 25.6 | |||
| 11.8 | 3.15 | 8.43 | 25.4 | 7.94 | 24.01 | 67 | 12.5 | 24.96 | |||
| 11.8 | 4 | 12.86 | 25.4 | 9.53 | 33.02 | 71 | 8 | 10.29 | |||
| 11.8 | 5 | 18.9 | 25.4 | 10.01 | 35.94 | 71 | 10 | 15.68 | |||
| 11.8 | 6.3 | 27.85 | 26.5 | 6.3 | 15.37 | 71 | 11.2 | 19.38 | |||
| 12.5 | 3.15 | 8.05 | 26.5 | 8 | 23.56 | 75 | 10 | 14.94 |
विशिष्ट अनुप्रयोग:
नोटिस:
हमारे मानक उत्पादों के अलावा, हम चौड़ाई, लंबाई, प्रकार, आकार, आकार में कस्टम बुनाई उत्पादों का उत्पादन कर सकते हैं,आपके विनिर्देशों या उपकरण की सीमाओं के आधार पर आवश्यक मात्रा और संयोजन.
